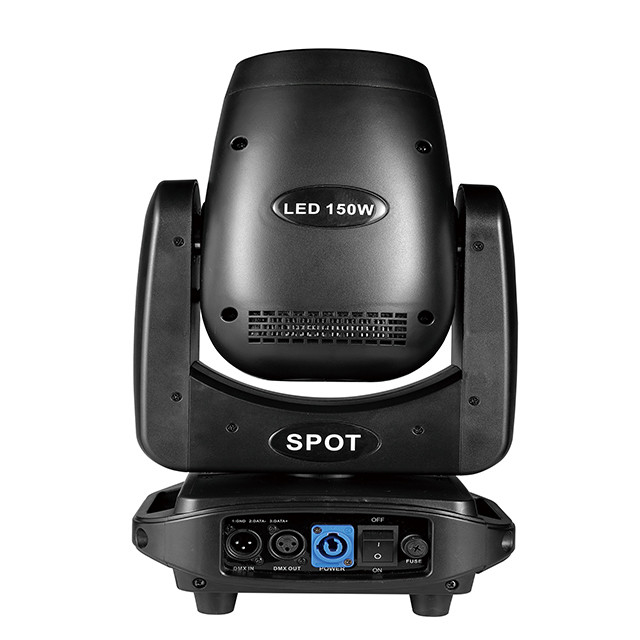

Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
  • Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture

Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture

Place of Origin Guangdong, China
Brand Name ATG
Product Details
Color Temperature(CCT):
7000K
Lamp Luminous Efficiency(lm/w):
81
Color Rendering Index(Ra):
93
Support Dimmer:
Yes
Lighting Solutions Service:
Lighting And Circuitry Design, DIALux Evo Layout, LitePro DLX Layout, Agi32 Layout, Auto CAD Layout, Onsite Metering, Project Installation
Input Voltage(V):
AC100-240V 50/60Hz
Type:
LED Matrix Light
Lifespan (hours):
50000
Working Time (hours):
50000
Product Weight（kg）:
6.75
CRI (Ra>):
93
Working Temperature(℃):
-10 - 50
Working Lifetime(Hour):
50000
IP Rating:
Ip44
Emitting Color:
RGB/RGBW
Application:
Club, Stage, Concert, Theme Park Etc.
Light Source:
Semiconductor Pump Laser
Warranty(Year):
3-Year
Control Mode:
DMX512/master-slave/sound/auto
Payment & Shipping Terms
Minimum Order Quantity
5 pieces
Price
$211.00/pieces 5-49 pieces
Packaging Details
Carton, Flightcase,boxes
Supply Ability
3000 Piece/Pieces per Month
Product Description
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 0
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 1
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 2
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 3
Rated voltage
AC100V ~ 240V 50/60Hz
Light bead specification
150W white LED
LED light ring
29 LED high-brightness triplex one lamp beads, built-in a variety of horse riding effect program, can be separated from the console master and slave synchronous operation
Beam Angle
Zoom 0° ~ 5°64mm large aperture light, beam Angle 14 degrees
Color
with macro command function
Color disk
 7 colors + white full color/half color/linear color variable speed two-way rainbow effect, built-in efficient hall device
Pattern
1 fixed pattern plate: 7 patterns +6 glass patterns + white light, two-way variable speed rotation, variable speed jitter effect, two-way variable speed flow effect, built-in efficient hall device
Prism
 1 (6+12 double-layer prism), can be superimposed bidirectional variable speed rotation
Focus
 DMX linear focus with auto focus function
Control mode
 22CH (standard) 1 channel control mode, standard DMX512 protocol, RDM protocol
Control interface
DMX512 interface (3-core / 5-core optional), power cord hand-in-hand socket
Cooling system
Light aluminum radiator, fan intelligent monitoring technology.The fan speed is automatically adjusted according to the lamp temperature, and the intelligent system for overheat protection/intelligent temperature and noise balance module is built in.
Protection level
 IP20, optional rain cover protection level up to IP44
Lighting packaging
 Waterproof and shock-proof airbox or carton
Packing size
42*30.5*30CM
Net weight
6.75KG
Gross weight
7.4KG
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 4
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 5
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 6
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 7
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 8
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 9
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 10
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 11
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 12
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 13
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 14
stage light par light beam light truss laser light LED light
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 15
stage light par light beam light truss laser light LED light
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 16
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 17
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 18
Lighting Solutions Service Agi32 Layout LED150W Three in One Pattern Light with Aperture 19
